Crylink's 1300nm laser for medical applications is described in detail.

Because the water molecules in the 1300nm band are substantially absorbed, 1300nm lasers offer a wide variety of uses in clinical medical hemostasis, laser cosmetic, skin disease therapy, and dentistry treatment. The Nd:YAP laser crystal has a wavelength of 1300 nm.


1300nm Laser (Nd:YAP)

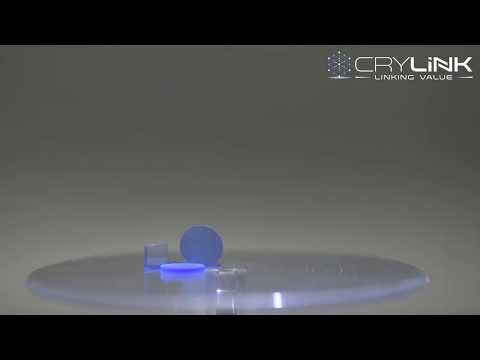

Laser Crystal - Nd:YAP


The transition cross section of the Nd:YAP crystal is enormous, and it has a high photomechanical coefficient, thermal conductivity, and polarization output. For high-power 1300nm lasers, the Nd:YAP crystal offers clear benefits. Long crystal rods constructed of long-term storage by rounding, cutting, polishing, and coating are utilized in the structure drawing.
The holographic mirror M1 and the associated output mirror M2 make up the laser cavity. The frequency modulation range of the BBO crystal is 189-3500nm, and it is constantly changeable. In Nd:YAP lasers, BBO crystal is commonly employed.

Feature

Great optomechanical coefficient

Large transition section

High thermal conductivity

Stable performance

Shallow depth of penetration

High surgical safety

Application

Clinical medical hemostasis

Treatment of skin diseases

Treatment of chronic periodontitis

Treatment of oral hemangiomas

If you need anything, please contact us
